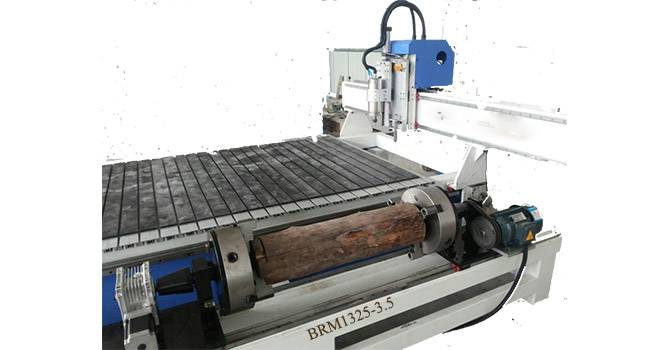

Avail from us the high quality CNC Router BRM 1325 - 3.5 PARAMETERS. We also offer router cutting machine, CNC wood cutting machines, wood carving router to our prestigious clients. We offer these at the most competitive rates. Our range of wood carving machinery is highly renowned in the industry for its high functionality and durability. Few of the parameters are as follows:
| Description | Parameter |
|---|---|
| X,Y,Z, Working Area | 1300x2460x200/300/400 mm |
| Table Size | 1440x3040 mm |
| X, Y, Z Positioning Accuracy | ±0.03/300 mm |
| X, Y, Z Repeatability | ±0.05mm X,Y, Accuracy <0.01mm |
| Structure | Ground Stress - Relieved Steel Base |
| X, Y, Axiz | Imported Guide ways & Rack & Pinion |
| Z Axis | Imported Guide ways & Ball Screws with anti-backlash ball nut |
| Max. Power consumption | 7.0 Kw without spindle |
| Spindle | 2.0/3.0/6.0 Kw HSD - Italy sev-spindle |
| Travel Speed | 0-32,000mm/min |
| Cutting Speed | 0-20,000mm/min |
| Spindle Speed | 0-18000 rpm |
| Drives | All 3 axis micro stepper opt. Servo Japan |
| Voltage | AC220V/50/60Hz |
| Command | G Code, 'uoo, 'mmg, *plt |
| Operating System | DSP System [Mach 3 PC Software] |
| Interface & Flash Memory | Printer Port 50pin and USB, 32MB |
| Collets | Ø 3.175, Ø 4. Ø 6 & 12.75 |
| Cutters | 21 Nos. |
| Software | Type3 & U Can Cam - V8 |
| Packing Size Separated | 3200x1960x1340 mm |
| Integrated | 3200x1960x1870 |
| Net Weight | 1100KG (Gross Weight 1250kg) |
