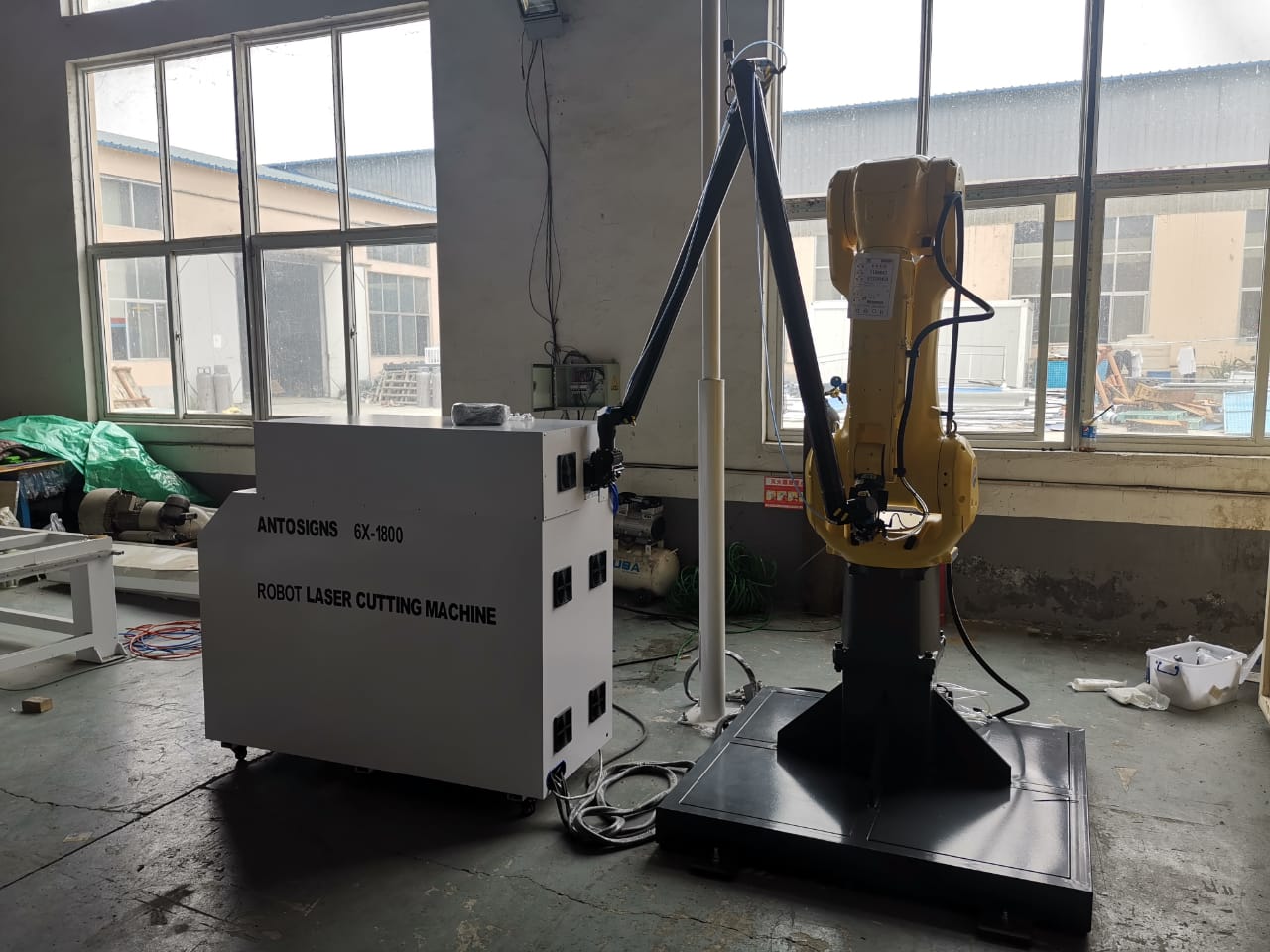

6 axis CNC Robot Laser cutting machine
The 6 Axis robot based laser cutting machine can execute 2D and 3D laser cutting and more.
The 6 Axis robot based laser cutting machine can execute 2D and 3D laser cutting and more.
| Description | Parameter |
|---|---|
| Machine Model | ROBOT LASER CUTTING MACHINE BRM-6X-1800 |
| Arm Length | 1800 mm |
| Load | 25kgs |
| Head | raytool co2 |
| Beam Binder | outside |
| Report positioning accuracy | 0.05 mm |
| Laser tube | 300w China reci RF metal tube |
| Water chiller | CW6200 |
| Weight (without control cabinet, laser and beam) | 360kg |
| Connected Load (without laser) | 7.1kVA |
