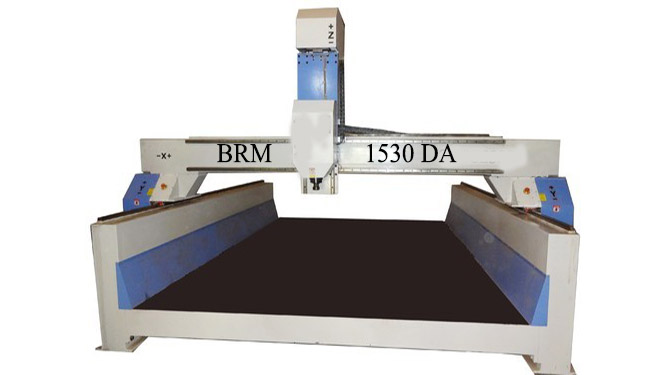

These pattern making machines are used for making unique designs and patterns. We offer high performing range of CNC wood pattern making and wood working machine. These machines are used in different construction sector and mainly in the wooden crafting. The machines that we offer are perfect for door carving and making unique patterns on them.
| Description | Parameter |
|---|---|
| X, Y, Z Working Stroke | 1600 x 1500 x 600 mm (option 500 mm / 700 mm / 1 Meter) |
| Table Size | 1900 x 1800 mm |
| X,Y Structure | Rack and Pinion Drive, Screw Ball Hiwin Rail Linear Bearings |
| Max. Speed | 30,000 mm/min |
| Spindle Power Motor | 7 KW / 7 HP Giordano Colombo air cooling spindle |
| Spindle Speed | 6000 - 24000 RPM (Electronic Fan) |
| Speed of Spindle | 2000-24000RPM |
| Driving System | Servo system |
| Working Voltage | AC 380 V / 50 / 60Hz 3PH (optional: 220V) |
| Command | G code, M code |
| Operating System | DSP System |
| Collet | ER25 option ER 32 / ER 40 / BT 30 / BT 40 |
| Software Compatability | Type 3, Ucancam, MasterCam, Delcam |
