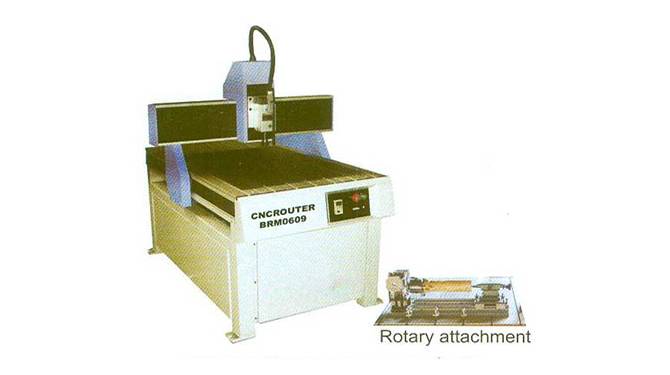

CNC Router machine 0609 - 1.5/2

We are engaged in providing the high quality CNC router machines. We offer these at the most competitive rates. Our range of cnc engraving machine is widely appreciated for its high quality and long functionality. These are manufactured as per the defined industry standards. Further, we also offer mini CNC router engraver and CNC router cutters to our valuable clients. These are widely appreciated for its CNC router engraving and CNC router carving. Some of the specifications are as follows:

Product Specification

Description Parameter
X,Y,Z, Working Area 600 x 900 x 120mm
Table Size 720 x 1140 mm
X, Y, Z Positioning Accuracy +_ 0.03/300mm
X, Y, Z Repeatability +_0.05mm
X, Y, Accuracy 0.01mm
Structure Cast Aluminium
X, Y, Z Axiz Linear Guide Way & Ball Screw
Max. power consumptiom 3.0 Kw without spindle
Spindle 1.5 Kw SC spindle (opt. HSD Italy)
Travel Speed 0-5500mm/min
Cutting Speed 4000 mm/min
Spindle Speed 0-24000 rpm
Drives All 3 axis micro stepper 2.A 1.8 deg
Voltage AC220/50/60Hz (opt.380V)
Command G Code, *uoo,*mmg.*plt
Operating System DSP System opt Mach 3 PC Software
Interface & Flash Memory Printer port 50Pin and USB, 32MB
Collets Ø 3.175, Ø 4 & Ø 6
Cutters 21 Nos
Software Type3 & U Can Cam -V8
Packing Size 910 x 882 x 800mm
Net Weight 115 KG (Gross Weight 202kg)
